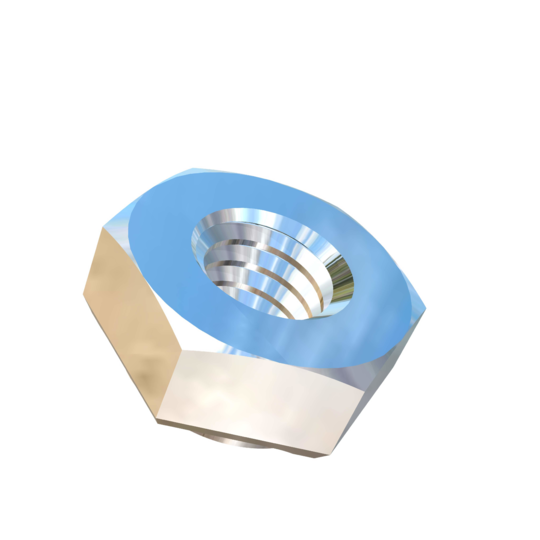

    Item # 0107233: 5/16-18 UNC Allied Titanium Hex Weld Nut with welding pads, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium 5/16-18 UNC Allied Titanium Hex Weld Nut with welding pads
  These titanium weld nuts are designed to be centered into a hole using a boss on the bottom of the nut as a guide. The three identical weld pads on the bottom of the nut then raise it above the surface it is being welded to, allowing molten metal to get underneath the main structure for a more secure weld. The hex size of the nut has been increased to compensate for potential heat warping of the nut's internal threads.

These nuts are manufactured from Grade 5 (Ti-6Al-4V) titanium, a common aerospace alloy with a yield strength that is approximately three and one half times stronger than 316 stainless steel or Grade 2 (CP) titanium.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
  Made in USA
Price: $15.48
Unit: Each
Min. Order Qty: 400
1st Qty Break: 2000
1st Break Price: 12.39
2nd Qty Break: 8000
2nd Break Price: 10.33
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0037
Measure: Inches
Diameter: 0.3125
Pitch: 18
Length:
Group: Fasteners
Category: Fastener, Nut
Sub Category: Hex Weld Nut
Tolerance: +0/-0.011 inch
UPD # Ti5FNWLNHI0.3125-18P
Index: Nut, Weld
