    Item # 0052502: 3/8-16 Pitch X 7/8 inch, 12 point Flange Head Allied Titanium Bolt, Grade 5 (Ti-6Al-4V) Titanium with Unpolished Finish

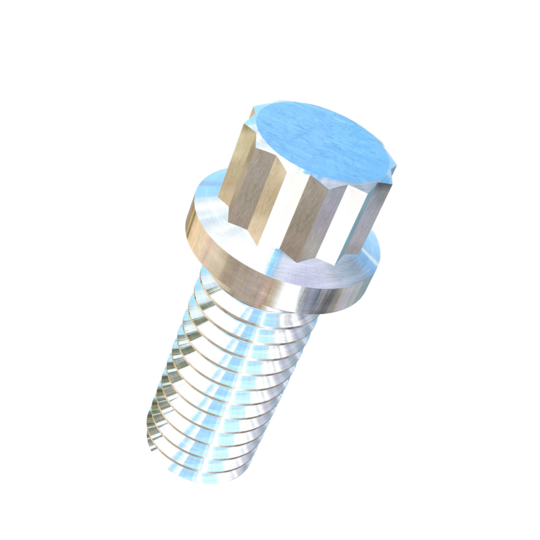

Titanium 3/8-16 Pitch X 7/8 inch, 12 point Flange Head Allied Titanium Bolt
  Also known as a ferry cap screw, a twelve point flange bolt offers an alternative head design for a standard hex bolt. The twelve point design permits greater torque to be applied to the screw and reduces rounding out of the hex head that sometimes occurs with standard hex cap screws. A flange built into the bottom of the head also greatly distributes the bearing load and acts as a non spinning washer.

Titanium 12 point flange bolts will remain corrosion free in the natural environment perpetually. Not only are they corrosion proof, titanium 12 point flange bolts are stronger as well. A grade 5 (6Al-4V) titanium bolt has a yield strength of 128,000 PSI, approximately 3 and a half times as stronger than 316 stainless steel. Plus they weigh only about half as much as stainless steel.

These twelve point flange bolts are TRUE TITANIUM(TM). TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: $9.69
Unit: Each
Min. Order Qty: 100
1st Qty Break: 1000
1st Break Price: 9.69
2nd Qty Break: 2500
2nd Break Price: 9.69
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0101
Measure: Inches
Diameter: 0.375
Pitch, Grip Length or Thickness: 16
Length: 0.875
Group: Fasteners
Category: Fastener, Bolt
Sub Category: 12 point Flange Bolt
Version: 2
Tolerance: +0/-0.010 inch
UPD # Ti5FB12FBI0.375-16X0.875U2
Used In Item # (s):
Index: Bolt, 12 point Flange, Grade 5 Titanium (No Dimple)
