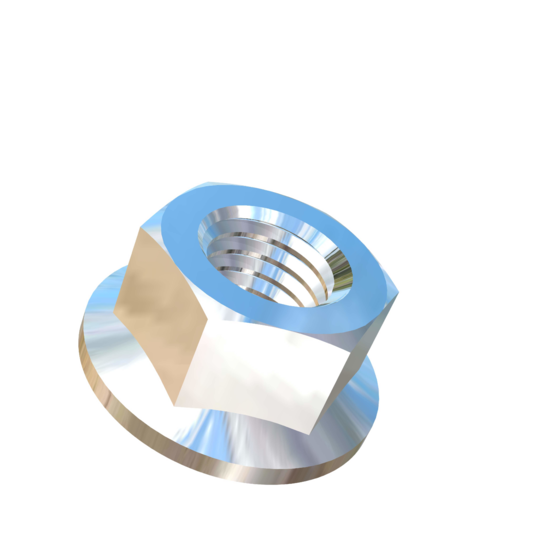

| M12-1.75 Pitch Allied Titanium Hex Flange Nut, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish |
 |
| |
A flange nut is a type of nut that has a wide flange on the bottom that acts as built in washer. This serves to distribute the pressure to a larger bearing surface of the nut over the part being secured, reducing the chance of damage to the part.
These flange nuts are Grade 5 (Ti-6Al-4V) titanium and are TRUE TITANIUM(TM). They are about 3 and a half times stronger than stainless steel, 44% lighter and completely corrosion free, even in saltwater. These , aerospace grade nuts have a minimum yield strength of 128,000 psi (880 Mpa). If you are a race car driver, these are the flange nuts you want holding your car together. If you are a sailboat cruiser, these are the nuts you want holding your rig up.
TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc. |
|
| $17.77 |
| Each |
| 100 |
| 1000 |
| 15.45 |
| 2500 |
| 13.14 |
| |
Please call (800) 725-8143 or (302) 249-3295 if you need help. |
|
| 0.0119 |
| Metric |
| 12 |
| 1.75 |
|
| Fasteners |
| Fastener, Nut |
| Hex Flange Nut |
| +0/-0.27 mm |
| Ti5FNHXFNM12-1.75P |
| Nut, Hex Flange, Grade 5 Titanium |
| 4161 |
| 6923 |
|
|
|
