Bolt, 12 point Flange, Grade 5 Titanium (No Dimple)
Contact Us

Titanium Products Info



 Min. Qty: 200 Each
View Cart
Facebook Connect
For member pricing

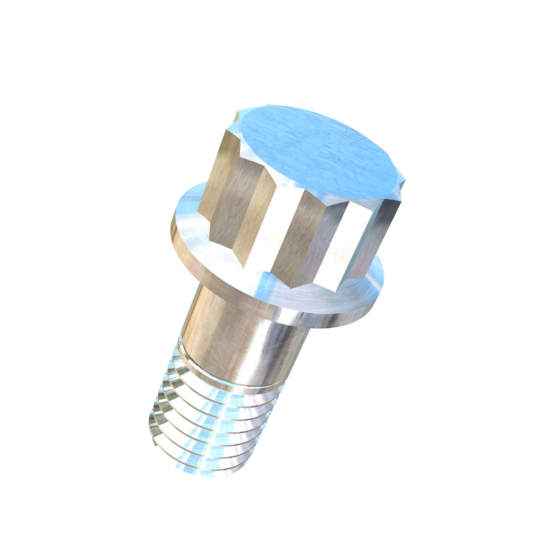

    Item # 0048243: M8-1.25 Pitch X 18mm, 12 point Flange Head Allied Titanium Bolt with 9mm of threads, Grade 5 (Ti-6Al-4V) Titanium with Unpolished Finish
Titanium M8-1.25 Pitch X 18mm, 12 point Flange Head Allied Titanium Bolt with 9mm of threads
  Also known as a ferry cap screw, a twelve point flange bolt offers an alternative head design for a standard hex bolt. The twelve point design permits greater torque to be applied to the screw and reduces rounding out of the hex head that sometimes occurs with standard hex cap screws. A flange built into the bottom of the head also greatly distributes the bearing load and acts as a non spinning washer.

Titanium 12 point flange bolts will remain corrosion free in the natural environment perpetually. Not only are they corrosion proof, titanium 12 point flange bolts are stronger as well. A grade 5 (6Al-4V) titanium bolt has a yield strength of 128,000 PSI, approximately 3 and a half times as stronger than 316 stainless steel. Plus they weigh only about half as much as stainless steel.

These twelve point flange bolts are TRUE TITANIUM(TM). TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 200
1st Qty Break: 2000
1st Break Price: Call (302) 249-3295
2nd Qty Break: 5000
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0073
Measure: Metric
Diameter or Thickness: 8
Pitch, Grip Length or Width: 1.25
Length: 18
Group: Fasteners
Category: Fastener, Bolt
Sub Category: 12 point Flange Bolt
Version: 2
Tolerance: +0/-0.27 mm
UPD # Ti5FB12FBM8-1.25X18U2
Used In Item # (s):
Index: Bolt, 12 point Flange, Grade 5 Titanium (No Dimple)
